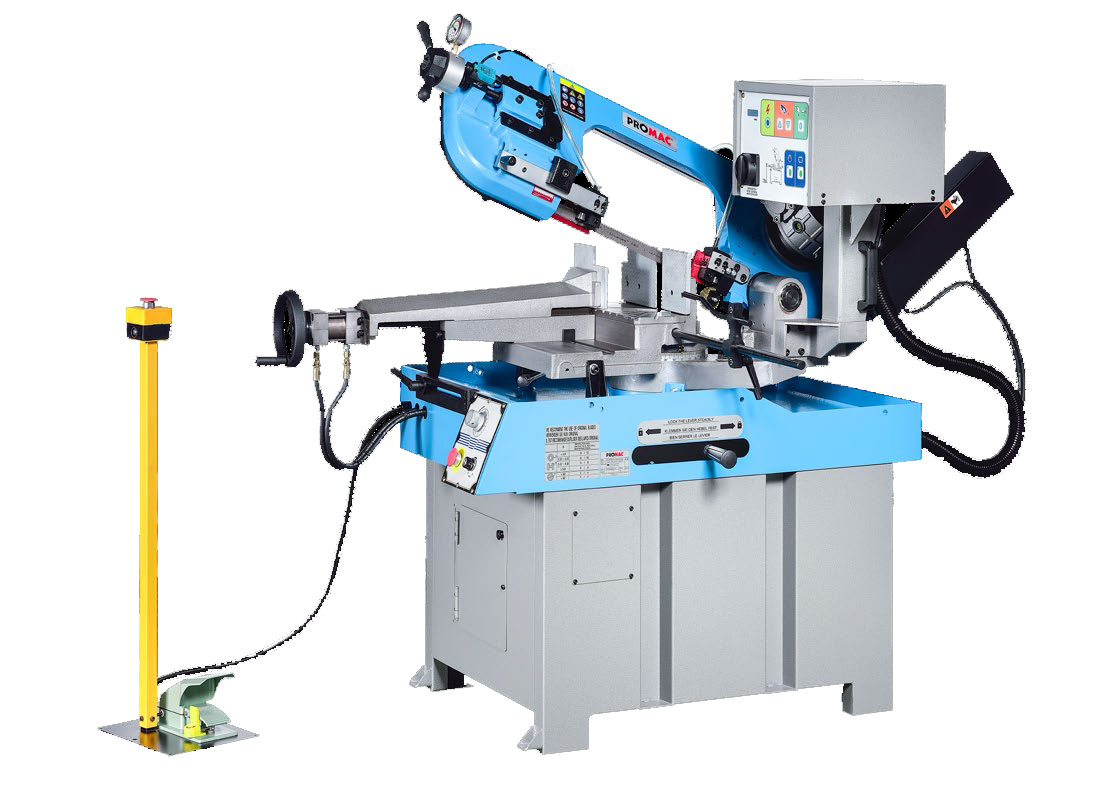

Metal Band Saw SX-823DGSVI

  • Hydraulically controlled semi-automatic machine.
  • Electronic variable speed control through frequency control.
  • Right-hand and left-hand cut by means of bow rotation.
  • Quick-clamping vise.
  • Including lubrication system.
  • Blade guides with rolling contact bearings and carbide guides.
  • Blade tension gauge.
  • Supplied with sawing band.
Κατηγορία: Brand:
    • Motor: 400 V / 1,1 kW.
    • Blade speed: 40 – 85 m / min-1.
    • Blade dimension: 2455 × 27 × 0,9 mm.
    • Tilting head, tiltable by: 60° right, 45° left.
    • Vise opening: 260 mm.
    • Working height: 900 mm.
    • Dimensions: 1100 × 1800 × 1700 mm.
    • Weight: 390 kg.
