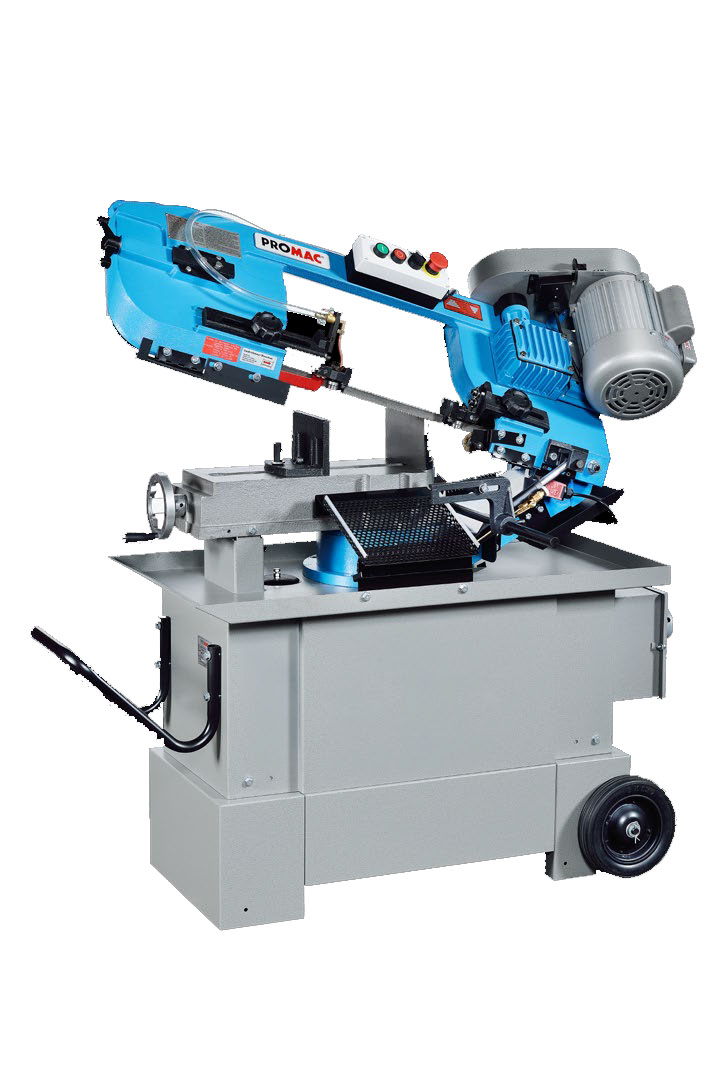

Metal Band Saw 917C / 917M

  • Quick-clamping vise.
  • Blade guides with rolling contact bearings and carbide guides.
  • Pivoting saw bow 45° to the right.
  • Lowering assisted by hydraulic cylinder with limit switch.
  • Thermal protection against overload and with emergency stop button.
  • Cutting line visualized by means of a laser device.
  • With lubrication system.
  • Supplied with sawing band and pedestal (moveable thanks to casters).
Κατηγορία: Brand:

    Model 917C

    • Motor: 400 V / 0,75 kW.
    • Blade speed: 22 / 33 / 45 / 65 m / min-1.
    • Blade dimension: 2360 × 20 × 0,9 mm.
    • Tilting head, tiltable by: 45°.
    • Vise opening: 290 mm.
    • Working height: 780 mm.
    • Dimensions: 570 × 1280 × 1060 mm.
    • Weight: 180 kg.

    Model 917M

    • Motor: 230 V / 0,75 kW.
    • Blade speed: 22 / 33 / 45 / 65 m / min-1.
    • Blade dimension: 2360 × 20 × 0,9 mm.
    • Tilting head, tiltable by: 45°.
    • Vise opening: 290 mm.
    • Working height: 780 mm.
    • Dimensions: 570 × 1280 × 1060 mm.
    • Weight: 180 kg.
