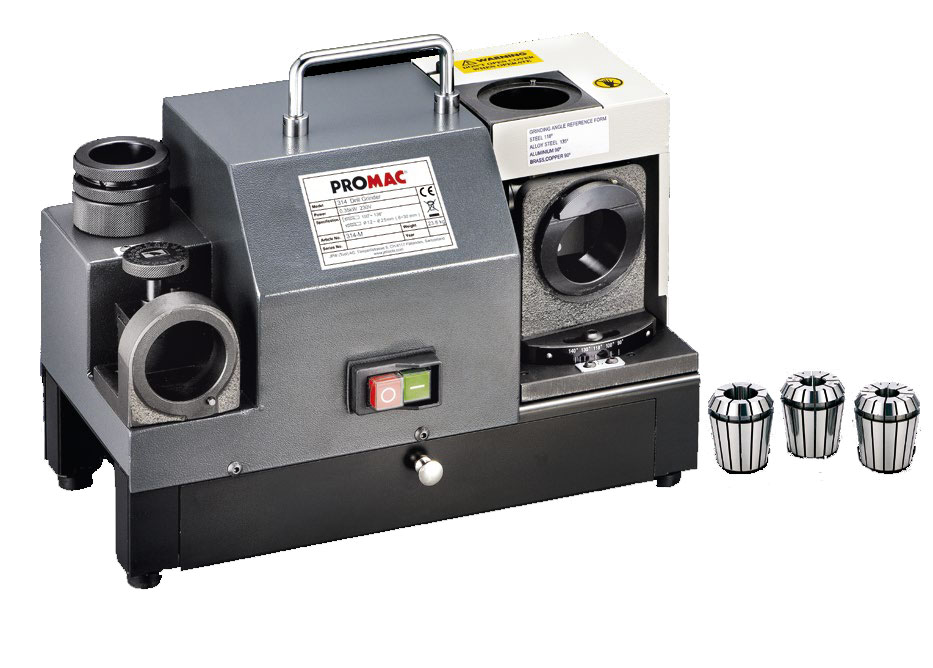

Drill Sharpener 314

  • Sharpening precision + / – 0.05 mm.
  • Fast sharpening of the bezel angle and of the point angle in one set-up.
  • Easy and precise adjustment of the drill bit position for a precise cutting angleƒƒ.
  • Powerful motor with continuous speed for ultra-fine sharpened surfaces.
  • Easy replacement of the sharpening wheel.
  • Provided with ER40 collet chucks: 12 / 13 / 14 / 15 / 16 / 17 / 18 / 19 / 20 / 21 / 22 / 23 / 24 / 25 mm.
  • Deliverable as option: Chuck ER40 8 / 9 / 10 / 11 / 26 / 27 / 28 / 29 / 30 mm.
  • Supplied with CBN sharpening wheel for longer life.
Κατηγορία: Brand:
    • Motor: 230 V / 0,35 kW.
    • Sharpening capacity: 2 – 25 (8 – 30 optional) ø-mm.
    • Thread angle: 100° – 136°.
    • Speed range: 5300 min-1.
    • Dimensions: 380 × 240 × 200 mm.
    • Weight: 23,8 kg.
