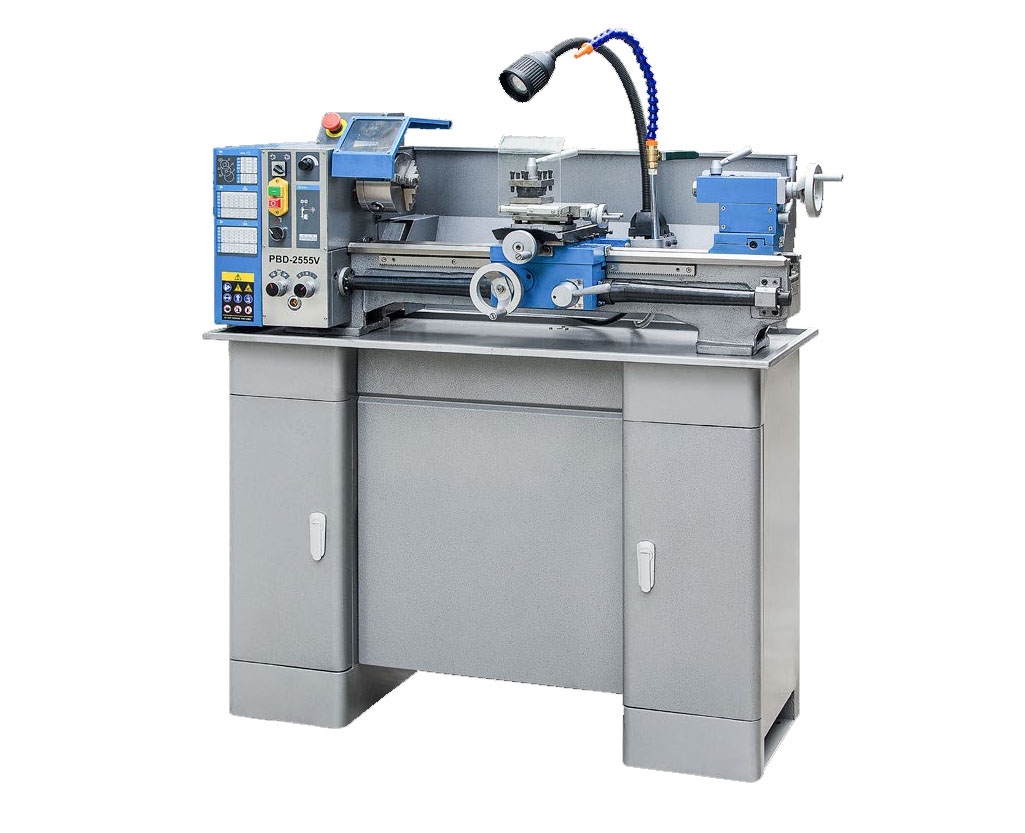

Metal Lathe PBD-2555V

  • Gray cast iron frame for vibration-free machining.
  • Electronic variable speed control.
  • CW / CCW rotation of the spindle enables threads to be realized.
  • Lathe chuck protection, emergency stop switch.
Κατηγορία: Brand:
    • Motor: 230 V – 1,1 kW.
    • Center height: 125 mm.
    • Center distance: 550 mm.
    • Swing over bed: 250 ø-mm.
    • Swing over carriage: 140 ø-mm.
    • Spindle bore: 26 mm.
    • Morse taper of headstock: MT4.
    • Speed range: 50 – 2500 min-1 (μεταβλητό).
    • Cross slide, stroke: 100 mm.
    • Top slide, stroke: 75 mm.
    • Range of metric threads: 0,2 – 4 mm.
    • Range of inch threads: 8 – 56 TPI.
    • Longitudinal feed:  0,07 / 0,4 mm /U.
    • Morse taper of tailstock: MT2.
    • Morse taper of tailstock, stroke: 60 mm.
    • Max. tool size: 12 mm.
    • 3-jaw chuck: 125 mm.
    • Dimensions: 1200 × 560 × 580 mm.
    • Weight: 156 kg.
