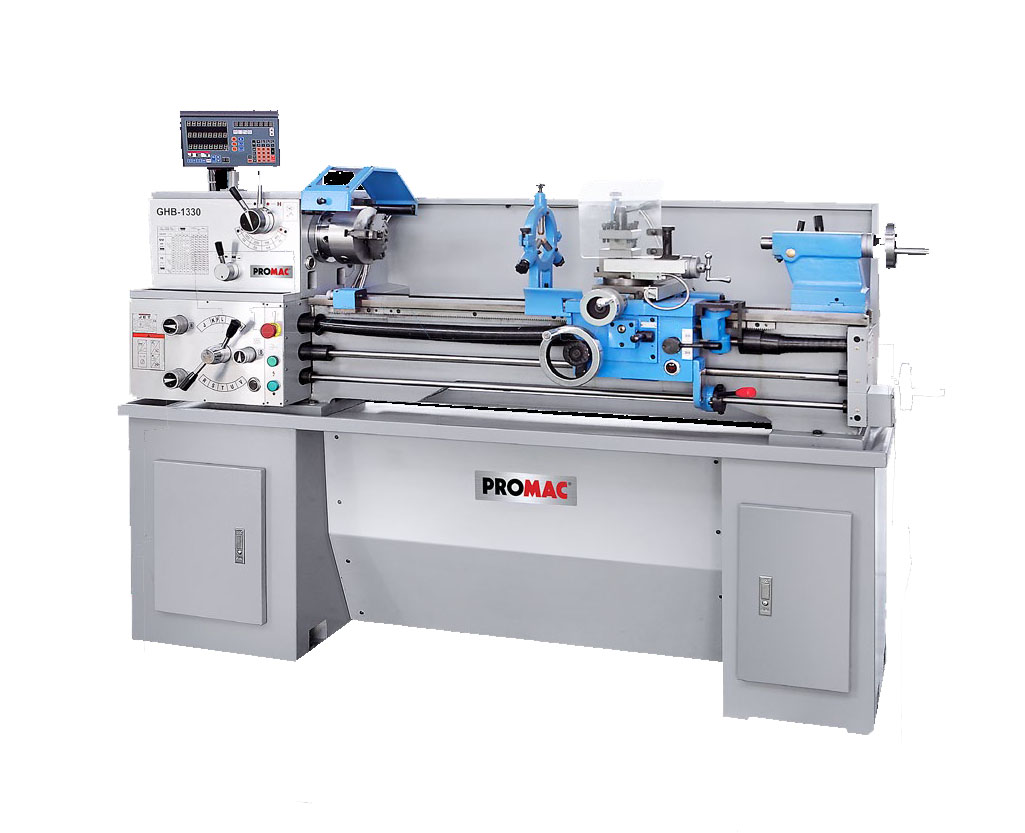

Metal Lathe GHB-1340-DRO

  • Equipped with digital display panel for X, Y and Z axes.
  • CW / CCW rotation of the spindle enables threads to be realized.
Κατηγορία: Brand:
    • Motor: 400 V – 1,5 kW.
    • Center height: 165 mm.
    • Center distance: 1000 mm.
    • Swing over bed: 330 ø-mm.
    • Swing over carriage: 197 ø-mm.
    • Spindle bore: 38 mm.
    • Morse taper of headstock: MT5.
    • Spindle taper: CAMLOCK D1-4 (DIN 55029).
    • Speed range: 70 – 2000 min-1 (μεταβλητό).
    • Cross slide, stroke: 160 mm.
    • Top slide, stroke: 68 mm.
    • Range of metric threads: 0,45 – 10 mm.
    • Range of inch threads: 3 1/4– 80  TPI.
    • Longitudinal feed:  0,037 – 0,989 mm /U.
    • Crossfeed: 0,01 – 0,268 mm /U.
    • Morse taper of tailstock: MT3.
    • Morse taper of tailstock, stroke: 105 mm.
    • Max. tool size: 16 mm.
    • 3-jaw chuck: 160 mm.
    • Dimensions: 1905 × 760 × 1200 mm.
    • Weight: 650 kg.
