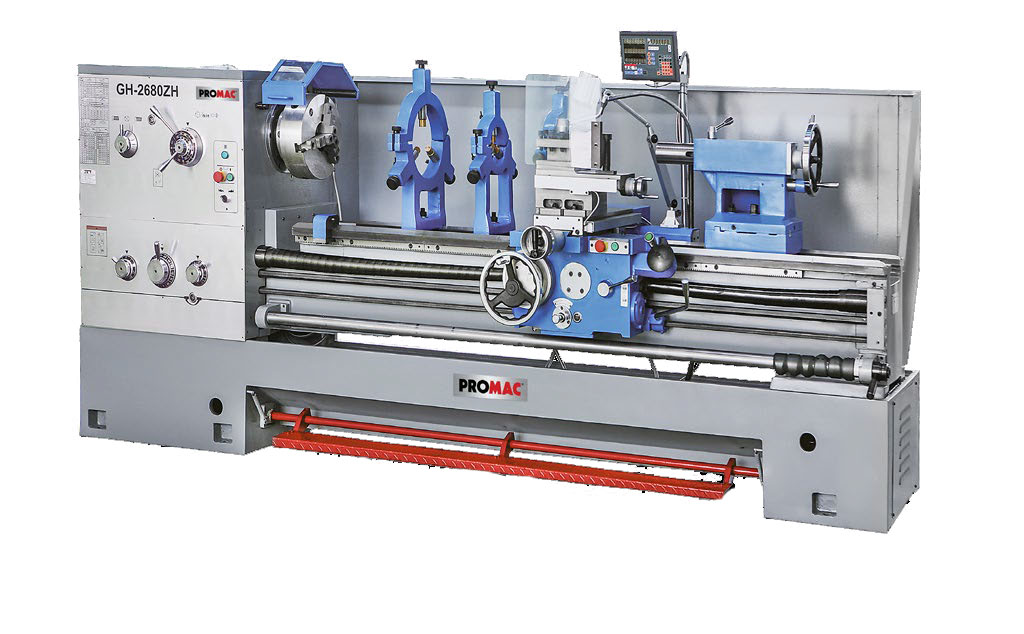

Metal Lathe GH-2680ZH-T

  • Equipped with monitoring function for 3 axes (X, Y, Z).
  • Headstock with mechanical coupling for smooth speed change.
  • Smooth start goes easy on the motor and reduces wear of reducer and belts.
  • Prismatic frame made of gray-cast iron, induction hardened.
  • All gears running permanently in an oil bath.
  • Reversal of direction CCW / CW.
  • Automatic longitudinal and traverse feed.
  • Incl. emergency stop switch.
Κατηγορία: Brand:
    • Motor: 400 V – 7,5 kW.
    • Center height: 330 mm.
    • Center distance: 2030 mm.
    • Swing over bed: 660 ø-mm.
    • Swing over carriage: 420 ø-mm.
    • Spindle bore: 105 mm.
    • Morse taper of headstock: MT7.
    • Spindle taper: CAMLOCK D1-8 (DIN 55029).
    • Speed range: 36 – 1’600 min-1.
    • Cross slide, stroke: 310 mm.
    • Top slide, stroke: 145 mm.
    • Range of metric threads: 1 – 14 mm.
    • Range of inch threads: 28 – 2 TPI.
    • Longitudinal feed:  0,063 – 2,52 mm /U.
    • Morse taper of tailstock: MT5.
    • Morse taper of tailstock, stroke: 150 mm.
    • Max. tool size: 25 mm.
    • 3-jaw chuck: 325 mm.
    • Dimensions: 3500 × 1100 × 1450 mm.
    • Weight: 3870 kg.
