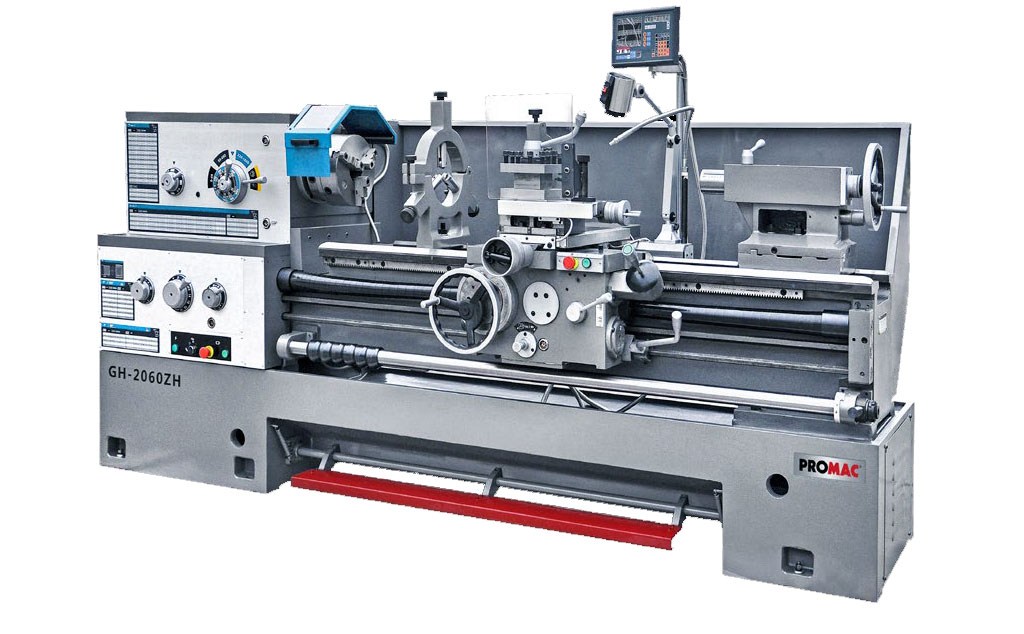

Metal Lathe GH-2060ZH-DRO

  • Prismatic frame made of gray-cast iron, induction hardened.
  • Smooth start.
  • Hardened and ground gears.
  • Equipped with monitoring function for 3 axes (X, Y, Z).
  • Incl. emergency stop switch.
Κατηγορία: Brand:
    • Motor: 400 V – 7,5 kW.
    • Center height: 250 mm.
    • Center distance: 1530 mm.
    • Swing over bed: 500 ø-mm.
    • Swing over carriage: 720 ø-mm.
    • Spindle bore: 80 mm.
    • Morse taper of headstock: MT7.
    • Spindle taper: CAMLOCK D1-8 (DIN 55029).
    • Speed range: 9 – 1600 min-1.
    • Cross slide, stroke: 310 mm.
    • Top slide, stroke: 145 mm.
    • Range of metric threads: 1 – 224 mm.
    • Longitudinal feed: 0,063 – 6,43 mm /U.
    • Crossfeed: 0,027 – 2,73 mm /U.
    • Morse taper of tailstock: MT5.
    • Max. tool size: 32 mm.
    • 3-jaw chuck: 250 mm.
    • Dimensions: 2500 × 1280 × 1300 mm.
    • Weight: 3000 kg.
