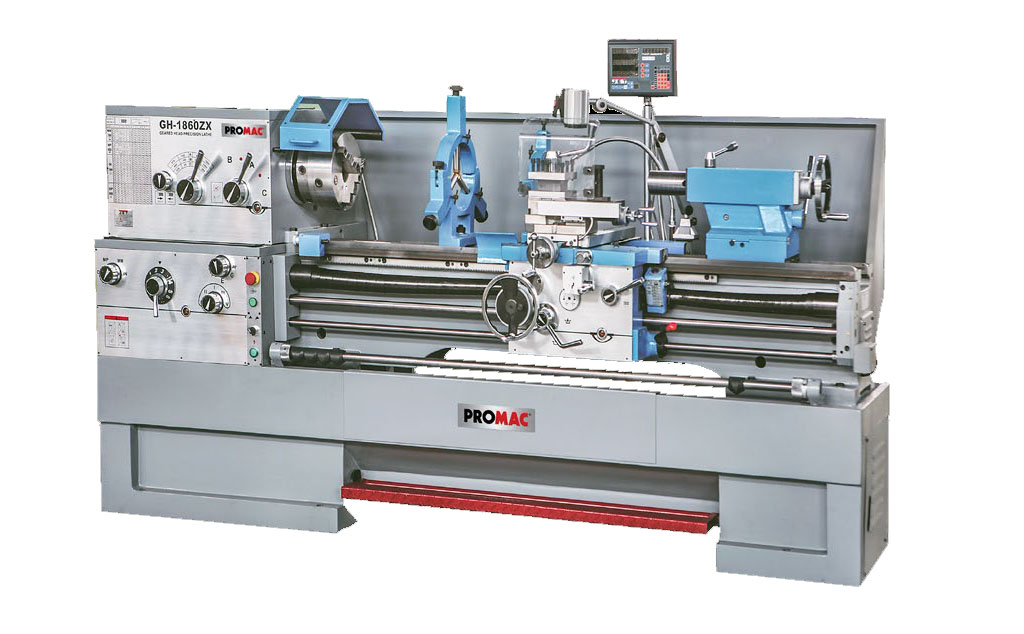

Metal Lathe GH-1860ZX-T

  • Equipped with monitoring function for 3 axes (X, Y, Z).
  • Prismatic frame made of gray-cast iron, induction hardened.
  • Reversal of direction CCW / CW.
  • Automatic longitudinal and traverse feed.
  • Incl. emergency stop switch.
Κατηγορία: Brand:
    • Motor: 400 V – 5,6 kW.
    • Center height: 230 mm.
    • Center distance: 1524 mm.
    • Swing over bed: 460 ø-mm.
    • Swing over carriage: 280 ø-mm.
    • Spindle bore: 80 mm.
    • Morse taper of headstock: MT7.
    • Spindle taper: CAMLOCK D1-8 (DIN 55029).
    • Speed range: 25 – 1800 min-1 (μεταβλητό).
    • Cross slide, stroke: 228 mm.
    • Top slide, stroke: 130 mm.
    • Range of metric threads: 0,5 – 20 mm.
    • Range of inch threads: 72 – 1 5/8 TPI.
    • Longitudinal feed:  0,038 – 2,3 mm /U.
    • Morse taper of tailstock: MT5.
    • Morse taper of tailstock, stroke: 124 mm.
    • Max. tool size: 25 mm.
    • 3-jaw chuck: 250 mm.
    • Dimensions: 2960 × 1016 × 1241 mm.
    • Weight: 2628 kg.
