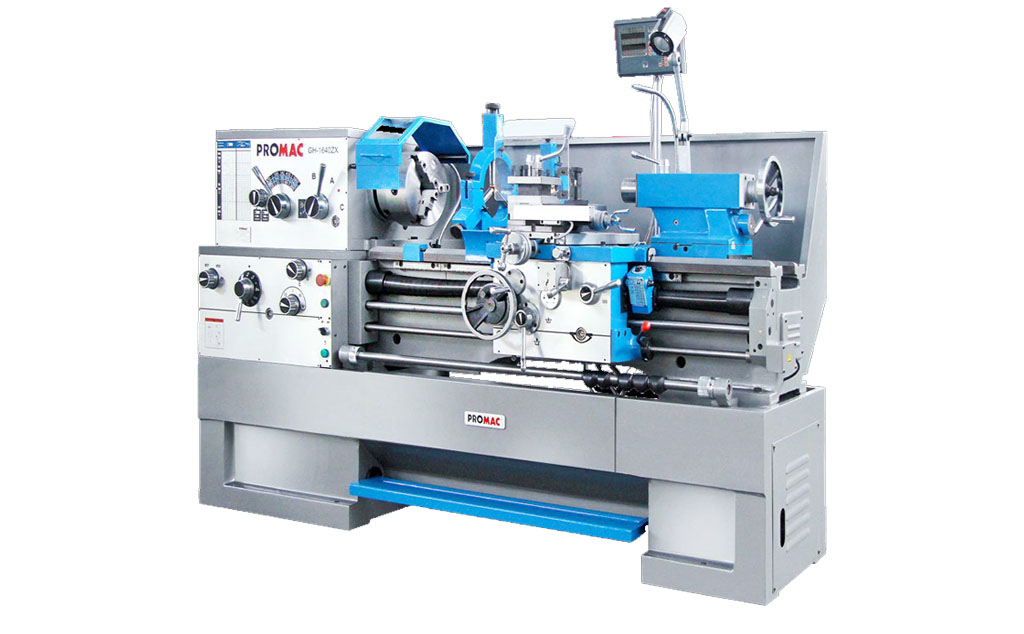

Metal Lathe GH-1640ZX-T

  • Equipped with monitoring function for 3 axes (X, Y, Z).
  • Prismatic frame made of gray-cast iron, induction hardened.
  • Reversal of direction CCW / CW.
  • Automatic longitudinal and traverse feed.
  • Foot brake with electrical switch.
  • Incl. emergency stop switch.
Κατηγορία: Brand:
    • Motor: 400 V – 5,5 kW.
    • Center height: 200 mm.
    • Center distance: 1015 mm.
    • Swing over bed: 406 ø-mm.
    • Swing over carriage: 254 ø-mm.
    • Spindle bore: 80 mm.
    • Morse taper of headstock: MT7.
    • Spindle taper: CAMLOCK D1-8 (DIN 55029).
    • Gear ranges: 12.
    • Speed range: 325 – 1800 min-1.
    • Cross slide, stroke: 228 mm.
    • Top slide, stroke: 130 mm.
    • Range of metric threads: 0,5 – 20 mm.
    • Range of inch threads: 75 – 1 5/8 TPI.
    • Longitudinal feed:  0,038 – 2,3 mm /U.
    • Crossfeed: 0,015 – 0,9 mm /U.
    • Morse taper of tailstock: MT4.
    • Morse taper of tailstock, stroke: 124 mm.
    • Max. tool size: 25 mm.
    • 3-jaw chuck: 250 mm.
    • Dimensions: 2462 × 1016 × 1220 mm.
    • Weight: 2120 kg.
