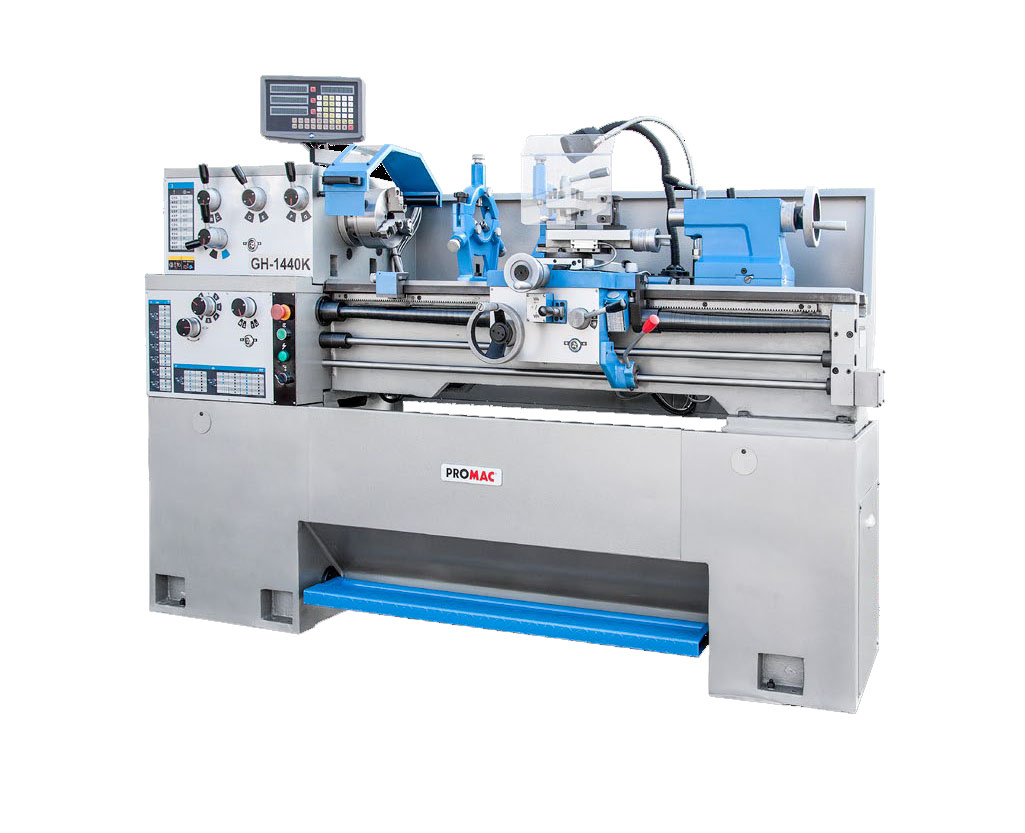

Metal Lathe GH-1440K-T

  • Equipped with digital display panel for X, Y and Z axes.
  • All gears running permanently in an oil bath.
  • Reversal of direction CCW / CW.
  • Automatic longitudinal and traverse feed.
  • Foot brake with electrical switch.
  • Halogen work light.
  • Automatic longitudinal and traverse feed.
  • Gray cast iron frame for vibration-free machining.
Κατηγορία: Brand:
    • Motor: 400 V -2,2 kW.
    • Center height: 178 mm.
    • Center distance: 1015 mm.
    • Swing over bed: 356 ø-mm.
    • Swing over carriage: 216 ø-mm.
    • Spindle bore: 38 mm.
    • Morse taper of headstock: MT5.
    • Spindle taper: CAMLOCK D1-4 (DIN 55029).
    • Gear ranges: 12.
    • Speed range: 40 – 1800 min-1.
    • Cross slide, stroke: 162 mm.
    • Top slide, stroke: 89 mm.
    • Number of threads: 22.
    • Range of metric threads: 0,4 – 7 mm.
    • Range of inch threads: 4 – 56 TPI.
    • Longitudinal feed:  0,04 – 0,6 mm /U.
    • Morse taper of tailstock: MT3.
    • Morse taper of tailstock, stroke: 120 mm.
    • Max. tool size: 10 mm.
    • 3-jaw chuck: 160 mm.
    • Bed width: 260 mm
    • Dimensions: 1873 × 750 × 1200 mm.
    • Weight: 945 kg.
