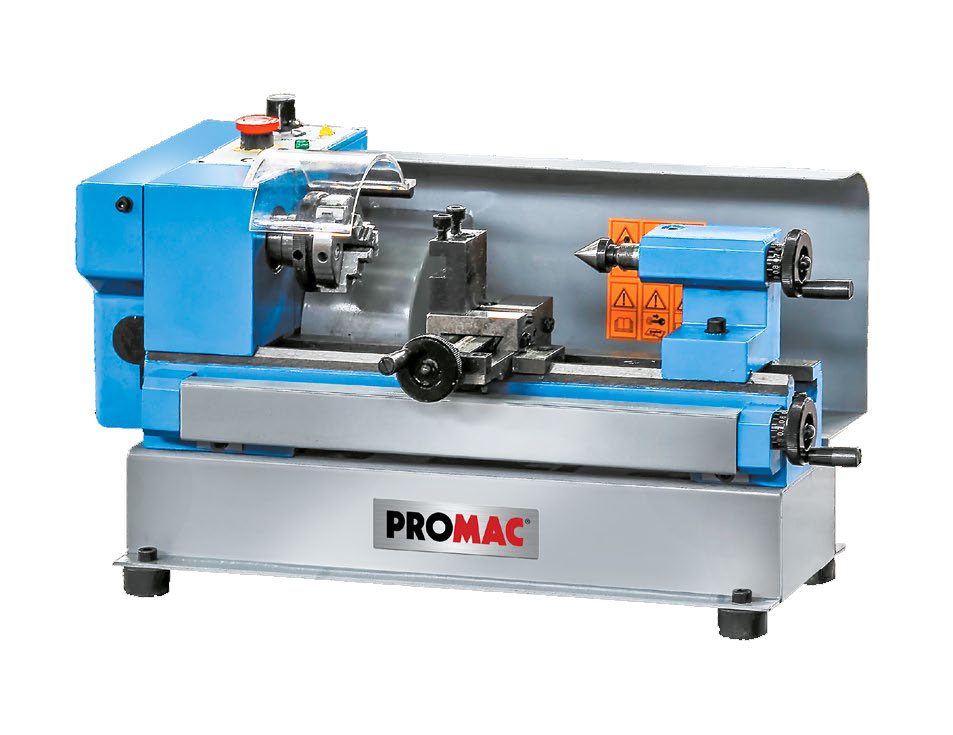

Metal Lathe BD-3-M

  • Electronic variable speed control.
  • ƒƒGray cast iron frame for vibration-free machining.
  • Ground bed guide.
  • Cross slide with adjustable guides.
  • Lathe chuck protection, emergency stop switch.
Κατηγορία: Brand:
    • Motor: 230 V – 0,15 kW.
    • Center height: 50 mm.
    • Center distance: 150 mm.
    • Swing over bed: 100 ø-mm.
    • Swing over carriage: 50 ø-mm.
    • Spindle bore: 10 mm.
    • Speed range: 100 – 3800 min-1 (μεταβλητό).
    • Cross slide, stroke: 50 mm.
    • Lead screw: 10 ø-mm.
    • Lead screw thread pitch: 1 mm.
    • Longitudinal feed:  0,09 mm /U.
    • Morse taper of tailstock, stroke: 23 mm.
    • Max. tool size: 10 mm.
    • 3-jaw chuck: 50 mm.
    • Dimensions: 440 × 270 × 210 mm.
    • Weight: 13 kg.
