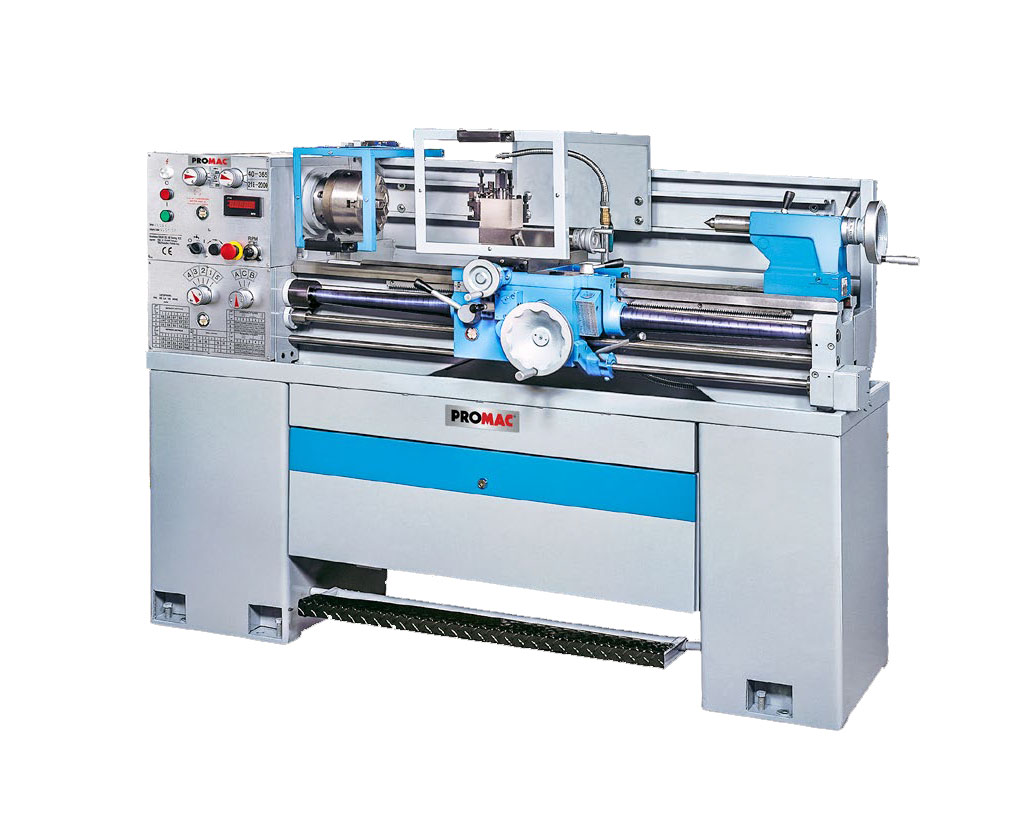

Metal Lathe 961V

  • Electronic variable speed control by frequency converter.
  • Automatic longitudinal and traverse feed.
  • Reversal of direction CCW / CW.
  • Incl. footbreak.
Κατηγορία: Brand:
    • Motor: 400 V – 1,47 kW.
    • Center height: 153 mm.
    • Center distance: 1000 mm.
    • Swing over bed: 305 ø-mm.
    • Swing over carriage: 186 ø-mm.
    • Spindle bore: 40 mm.
    • Morse taper of headstock: MT5.
    • Spindle taper: CAMLOCK D1-4 (DIN 55029).
    • Speed range: 40 – 365 min-1 / 210 – 2000 min-1 (μεταβλητό).
    • Cross slide, stroke: 170 mm.
    • Top slide, stroke: 90 mm.
    • Range of metric threads: 0,2 – 4 mm.
    • Range of inch threads: 8 – 56 TPI.
    • Longitudinal feed:  0,067 – 1,485 mm /U.
    • Crossfeed: 0,033 – 0,742 mm /U.
    • Morse taper of tailstock: MT3.
    • Morse taper of tailstock, stroke: 40 mm.
    • Max. tool size: 16 mm.
    • 3-jaw chuck: 200 mm.
    • Dimensions: 1550 × 750 × 700 mm.
    • Weight: 400 kg.
