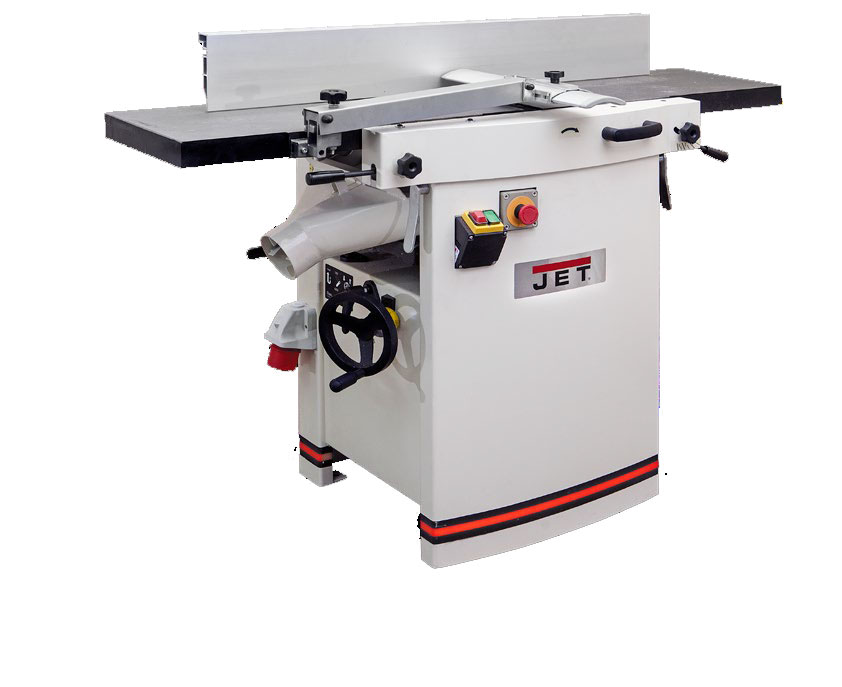

Πλάνη – Ξεχονδριστήρας Jet JPT-310-M / JPT-310-T
- Dual fold-out table to switch from planing to thicknessing in a matter of seconds, without removing the fence.
- Graded planing tables made from high-quality cast iron guarantee outstandingly smooth workpiece movement.
- Two-sided eccentric regulation for quick adjustment of the chip remover and hollow joint.
- The 3-knife shaft allows fast processing and top planing results.
- Large-sized planer fence made from aluminium, inclinable to 45°, precisely machined, stable in operation.
- Warp resistant one-piece machine casing for unfailing precision.
- Feed can be turned off.
Model JPT-310-M JPT310-T
Motor (V / kW) 230 / 2.9 400 / 2.9
Cutterhead rotation (rpm) 5’500 5’500
Feed speed (m / min) 7 7
Maximum planing width (mm) 307 307
Thicknessing height (mm) 4 – 225 4 – 225
Maximum depth of cut (mm) 3 3
Maximum thicknessing depth of cut (mm) 4.5 4.5
Number of knives 3 3
Planer blades (mm) 310 × 25 × 3 310 × 25 × 3
Depth of cut table size (mm) 540 × 307 540 × 307
Planing table length (mm) 1’400 1’400
Minimum thicknessing length (mm) 150 150
Fence size (mm) 1’100 × 150 1’100 × 150
Fence tilt (deg.) 45° / 90° 45° / 90°
Dust port (ø-mm) 100 100
Dimensions (mm) 1’400 × 750 × 1’000 1’400 × 750 × 1’000
Weight (kg) 230 230
