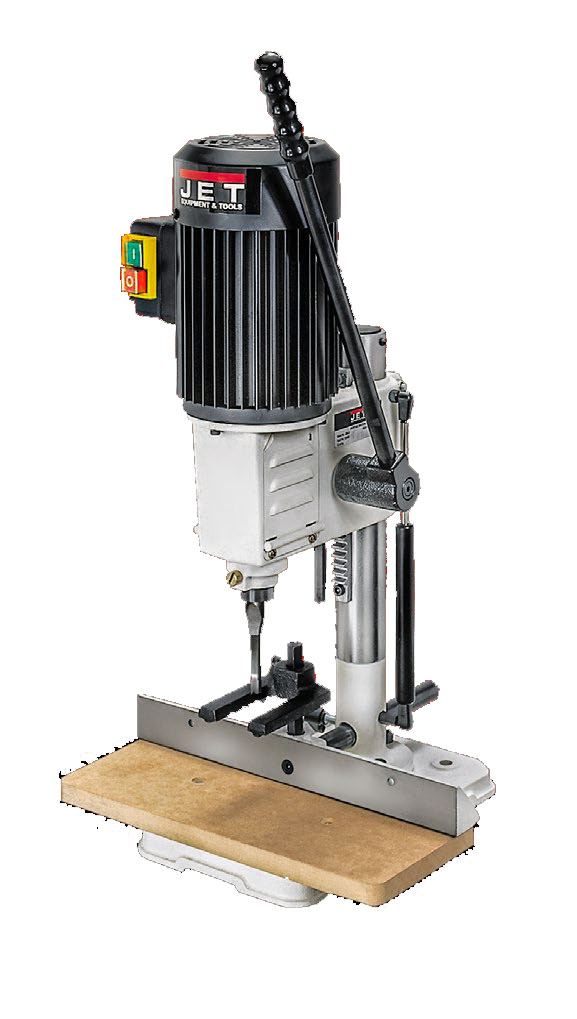

Μορσοτρύπανο Jet JBM-5-M

  • Compact, mobile and easy to use in the workshop or on a building site.
  • „„Heavy-duty cast iron construction for precision working.
  • „„With height adjustment via the toothed rack and gas pressure balancer cylinder.
  • „„Convertible drill lever.
  • „„Adjustable fence, workpiece hold-down and drill depth stop.
  • „„Table covering made from MDF, easy to replace.
  • „„Delivered without chisel pictured.
Κωδικός προϊόντος: JBM-5-M Κατηγορίες: , Brand:

    Motor (V / kW) 230 / 0.7
    Spindle speeds (rpm) 1’450
    Max. chisel size (mm) 12 × 12
    Max. bore size diameter (mm) 10
    Max. workpiece height (mm) 105
    Max. workpiece height with an extension (mm, optional) 155
    Max. chisel stroke (mm) 120
    Table size (mm) 345 × 150
    Centre of chisel to back fence (mm) 90
    Dimensions of the workpiece stop (mm) 345 × 90
    Dimensions (mm) 370 × 350 × 750
    Weight (kg) 23
