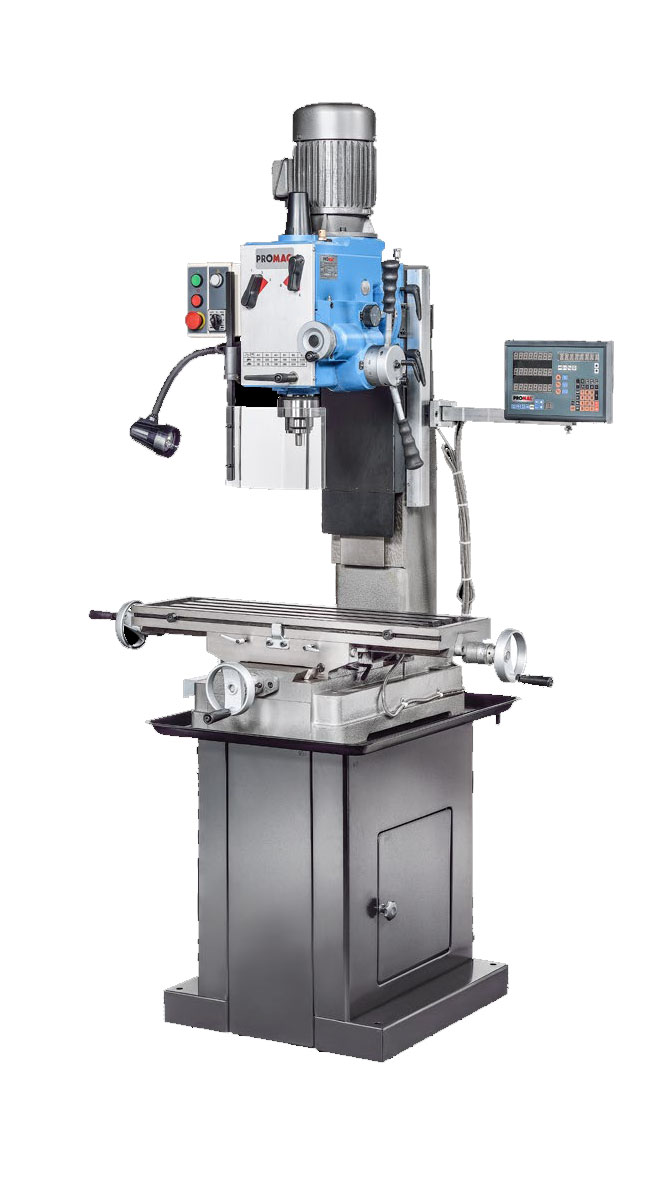

Drilling & Milling Machine JMD-45PFD-T

  • Automatic spindle lowering.
  • Equipped with monitoring function for 3 axes (X, Y, Z) with glass scale.
  • 2 gear motor.
  • CW / CCW rotation of the spindle enables threads to be realized.
  • Automatic downward movement of the spindle.
  • Compound table with parallel T slots (16 mm).
  • Tilting head, tiltable by 30° to the right and 90° to the left.
  • With MT2 / B16 adapter, M12 draw bar, 1 – 13-mm auto-clamping chuck, chuck guard and emergency stop switch.
Κατηγορία: Brand:
    • Motor: 400 V / 1,1 kW.
    • Morse taper: MT3
    • Cutting capacity for steel: 32 ø-mm.
    • Spindle stroke: 250 mm.
    • Max. milling plan / groove cutter: 30 / 20 mm.
    • Gear ranges: 12
    • Speed range: 50 – 2500 min-1
    • X axis, longitudinal stroke: 520 mm.
    • Y axis, transverse stroke: 210 mm.
    • Z axis, vertical stroke: 460 mm.
    • Throat: 250 mm.
    • Table dimensions: 240 × 825 mm.
    • Tilting head: 90° left, 30° right
    • T-Slot width: 16 mm.
    • Weight: 165 kg.
